Descripción

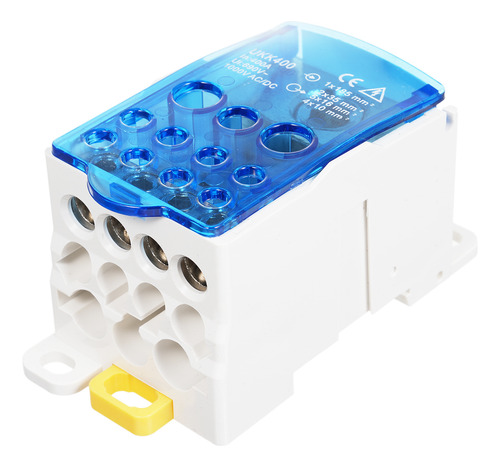

UKK Series unipolar junction box, have 5 different current specifications, from 80A to 500A. And they are widely used in distribution box devices. Its safety and space saving are the first choice for distribution box wiring. In addition, the design of the clamping feet could make the product easier to separate off the din rail.
Features:
Good Performance: Terminal block distribution box has flame-retardant shell so it has performance of high temperature and resistance, good insulation performance and long-lasting durability.
DIN Rail Mount: The distribution box adopts standard 35mm DIN rail mounting to ensure stable structure and good electrical performance.
Transparent Cover: The transparent cover can see if the cable is connected reliably.
Easy to Install: The terminal block distribution box is easy and quick to install on the rail.
Scope of Application: The junction box has standard terminal ports, widely used in distribution cabinet, distribution box, various high voltage cabinets, etc.
Specifications:
Model: UKK80A / UKK125A / UKK160A / UKK250A / UKK400A / UKK500A (Optional)
Material: PA Nylon
Flame Retardant Grade: UL94V0
Conductor Material: Brass
Screw Material: Iron nickel-plated, hexagonal screws
Rated Current: 400A
Rated Voltage: 690V IEC
1 Way In: 1 x 185mm2
2 x 35mm2
11 Way Out: 5 x 16mm2
4 x 10mm2
Product Outlet: 1 in 11 out
Mounting: 35mm rail mount or screw fixing
Item Size: 95 * 50 * 49mm / 3.74 * 1.97 * 1.93in
Item Weight: 394g / 13.89oz
Package Weight: 405g / 14.28oz
Package Size: 10 * 5.5 * 5.5cm / 3.94 * 2.16 * 2.16in
Package List:
1 * Terminal Distribution Box
