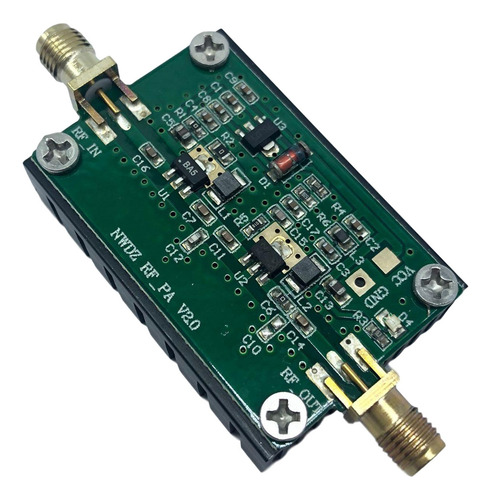

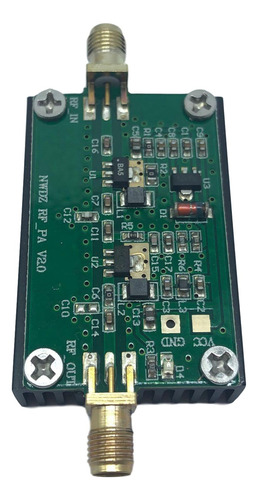

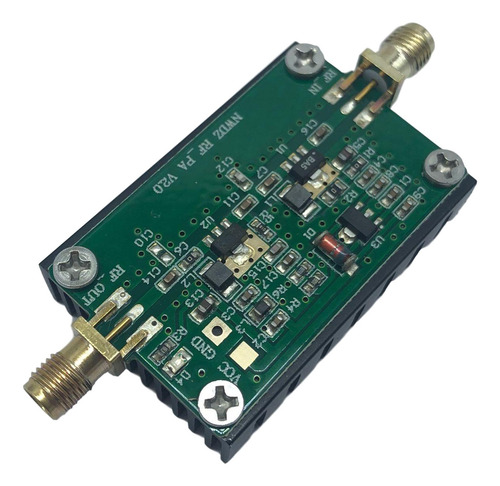

2-700MHz Broadband 35 dB High Gain LNA Low Noise RF Amplifier am Radio for Shortwave FM TV Audio
Description:
The RF amplifier have a wide range of applications.
Suitable for radio applications such as HF, FM, VHF UHF, Short-wave remote control, wireless digital , digital radio
Perfectly solves the problem of signal instability and signal fragility.
In signal-unstable areas such as indoors and outdoors, RF amplifiers can increase the possibility of continuous communication.
Smaller size: installation of equipment in a more confined space
Specification:
Power supply voltage: DC +12-15V (typical 15V@0.3-0.5A)
Working frequency: 2MHZ-700MHZ, input and output impedance: SMA@50ohm;
Maximum output power: 34.8dbm(3W)
Typical power gain: 35 dB (>300M gain slightly decreased)
Maximum input power: <+10dBm
Module size: 46x32x15mm
Measured power index
2-300M +34dBm maximum 3W
300-500M >+32dBm
Package Includes:
1 Piece Radio Frequency Power Amplifier
Note:
The RF power amplifier is a vulnerable part, it must be connected to the input and output and pay attention to the impedance matching and power-on test.
