Descripción
Packing list: Sampling valve*1
describe:

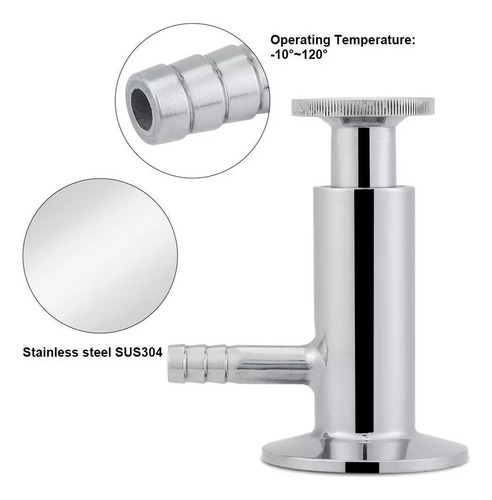

Stainless steel sampling valve is a multi-purpose valve used to obtain liquid samples in pipelines or equipment. Special sampling valves are used in many situations where frequent chemical analysis of samples is required.
Features:
This sampling valve is made of high-quality 304 stainless steel, which is durable and corrosion-resistant.
It has simple structure, beautiful appearance, quick installation and disassembly, and flexible operation.
It has small fluid resistance and is safe and reliable to use.
Standard design, the sampling valve consists of three parts: valve, handle and diaphragm. The rubber diaphragm on the valve stem acts as a plug.
Widely used in dairy, cosmetics, food, pharmaceutical, beer, chemical industry, petroleum, metallurgy, water heating, food, pharmaceutical and other industrial fields.
Specification:
Material: 304 stainless steel
Surface treatment: mirror polished
Pressure: normal pressure
Connection type: quick clamp connection
Color: silver
Card holder size: 50.5 10MM
Instructions for use:
Valve opening: Sampling: Turn the handle (regulating valve) or pull the lever (switch valve) to open the valve, and then the handle and diaphragm retract, allowing liquid to occur.
Close the valve: Disinfection: Reverse the steps and the built-in spring closes the valve, keeping
The channels between the hoses are clear for disinfection. If using steam it is recommended
Install a small pressure relief valve at the outlet.
*If you have any problems with the product, please leave me a message in time. I will be able to solve the problem quickly and efficiently.
*Please do not make a complaint before sending us a message as this may take more time to resolve the issue.
Thank you for your attention.
We wish you a happy life.
Notice:
1. Due to differences in monitors and lighting effects, the actual color of the item may be slightly different from the color shown in the picture. Thanks!
2. Due to manual measurement, there may be a measurement deviation of 1 to 3 cm.
