Descripción

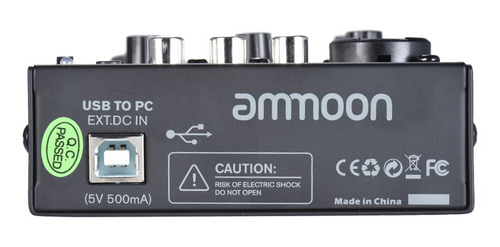

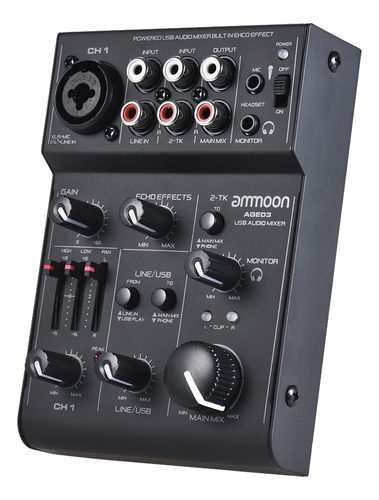

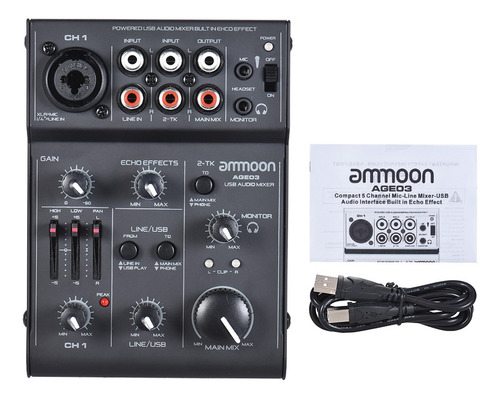

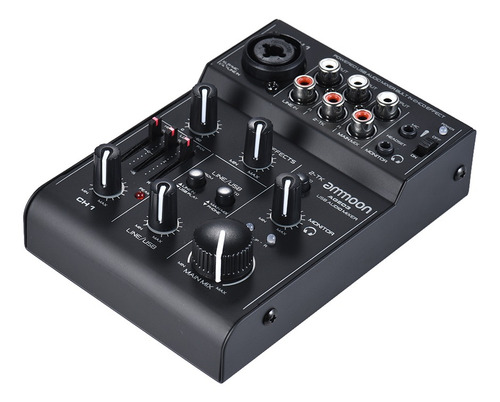

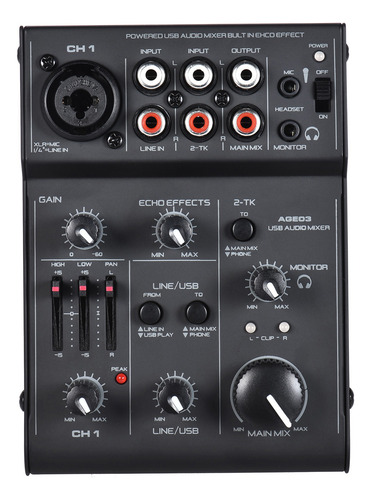

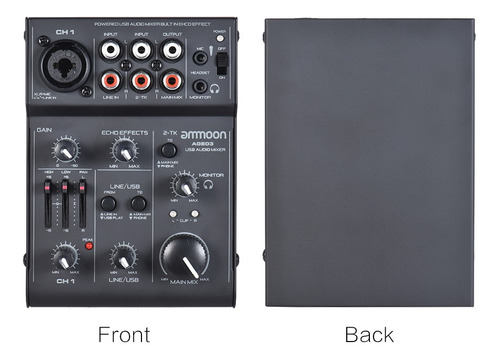

Features:Compact size 5-channel mixing console with USB 2.0 audio interface and audio data can be sent between the mixer and computer.DC 5V low voltage powered supports 5V power bank or computer power supply via the including USB cable convenient usage.It features 5 total inputs including a COMBO(XLR+TRS) jack with phantom 18 V power and EQ on Channel 1 which can be used to connect mono signal such as XLR microphone or 1/4 line level.It also delivers two stereo channels(Stereo LINE IN (RCA jacks) stereo S-TK input(RCA jacks) ),which connects an audio source with line level like CD player.Stereo MAIN MIX output (RCA jacks) for connecting the input of and amplifier or a recorder.With 3.5mm microphone input jack 3.5mm headphone output jack.(MIC and MONITOR jacks must be connected at the same time to avoid unnecessary noise)Other features: 2-band EQ(HIGH LOW) and PAN control; Built-in echo effect; GAIN control; headphone volume control; LED indicator lights; etc.Specifications:Brand: ammoonModel: AGE03Material: MetalPhantom power (Mic Pin2/Pin3 and Pin1): +18 VPower Supply: DC 5V 500mA via USB interfaceItem Size: Approx. 10 * 13.5 * 3.5cm / 3.9 * 5.3 * 1.4inItem Weight: Approx. 430g / 15.2ozPackage Size: Approx. 17.5 * 13.5 * 10.5cm / 6.9 * 5.3 * 4.1inPackage Weight: Approx. 620g / 1.4lbNote:This unit were using the best and the most stability brand TI USB chip set it is an integrated USB sound card and can be used with no external system driver and supports both MAC and Windows with many versions. Not supports ASIO drivers.Package List:1 * Mixing Console1 * USB Cable(about 1m)1 * User Manual(English)
