Descripción
Features:

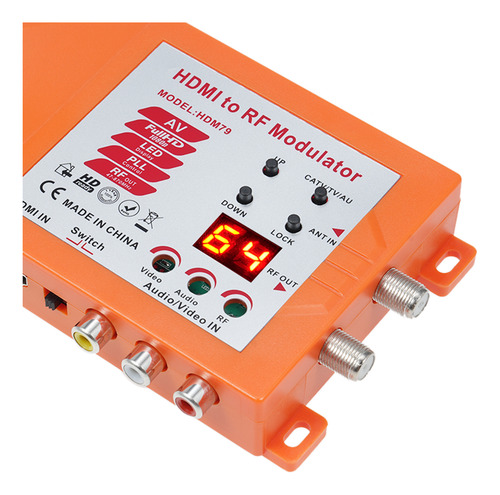

RF Modulator: TV or CVBS RCA in coaxial rf out composite converter will hook up your streaming media players like DVR, Blu-ray Player, TV tuner, android tv box, satellite set-top / cable box or game consoles & part of gaming laptops etc. modern HDMI-equipped video equipment that don't have TV nor AV jacks with older TVs to create your own home CCTV channel in kichen or RV.
RCA to Coaxial Adapter: Converts line level composite video / analog stereo audio signals to RF (coaxial) for connection to old TVs that do not have line level AV jacks; And the volume of audio & the brightness of video is adjustable.
TV to Coaxial Conveter: Convert TV digital signals into analog TV (RF) signals which have ultra long distance transmission to achieve watching movies / playing games / sharing program videos pictures / photos on CRT TV or other old televes in different rooms or farther away from the hdmi video source; It's a great long range VHF / UHF signal booster amplifier modulators!
TV Modulator: This powerful & functional SDR TV modulator is compatible with HDMI 1.3 and supports NTSC & PAL 2 different TV formats , VHF & UHF 2 operating frequencys up to 136 channels full band, and comes with the channel digital display & selectable switch; No drivers, adapters needed, plug and play, easy to use; You will get more benefits and convenience while saving a lot on your local CATV system.
TV to Coax or RCA to Coax: One F type female coax input for connection of antenna, hd tv tuner, satellite set-top / cable box; And a separate RF coaxial output for connection of TV or RF splitter to extend your digital / analog signals to other TVs; And it also comes with channel switch which will not interfere with existing players such as VCR.
Specifications:
Material: ABS
TV Standard Formats: PAL / NTSC
Frequency Range: 47~870MHz
Bandwidth: 6MHz, 7MHz, 8MHz
Output Level: 80~95dBuV adj
Input Level: 0.77Vp-p for 80%+/-10% modulation
Sound System: M=4.5MHz, B/G=5.5MHz, I=6.0MHz, D/K=6.5MHz
Input Port: TV and AV
RF Input: F female
RF Output: F female
Input Resolution: 1080P/1080i/720P/576P/576i/480P
TV Version: 1.4
HDCP Version: 1.4
Power Consumption: 90~240VAC
Operating Temperature: 0 Degrees Celsius~40 Degrees Celsius
Item Size: 165 * 81 * 24mm / 6.49 * 3.18 * 0.94in
Item Weight: 215g / 7.58oz
Package Weight: 272g / 9.59oz
Package Size: 18.5 * 12.5 * 3.5cm / 7.28 * 4.92 * 1.37in
Package List:
1 * RF Modulator
1 * User Manual (English)
