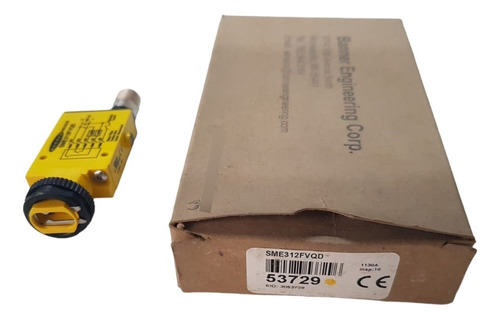

53729 Sensor Mini-beam Banner Mod. Sme312fvqd Nuevo

Descripción

!! SI FACTURAMOS !! MINI-BEAM EXPERT: Visible Red Glass Fiber Optic

Range: Depends on Fiber; Input: 10-30 V dc

Output: Bipolar: 1 NPN; 1 PNP

4-pin M12 Integral QD

Part Number: 53729

Accepts Fiber Termination Type Glass Fiber Termination
Power DC
IP Rating IP67
Housing Style Rectangular w/M18 Mount
Primary Housing Material Thermoplastic
Input Output Discrete
Color LED - Amplifiers Infrared
Fiber Type Glass Only
Output Bipolar (NPN & PNP)
Connection Integral QD
Quick Disconnect Type M12
Output Type (Specific) Single Discrete
Repeatability (µs) 100
Number of Pins 5
NEMA Rating NEMA 1, 2, 3, 3S, 4, 4X, 6, 12, 13
Max Op. Temperature (°C) 70
Min Op. Temperature (°C) -20
Max Op. Relative Humidity (%) 90% @ 50°C
Special Feature: Remote Teach Yes
Intrinsically Safe No
Adjustments Teach Button
Power Supply/Supply Voltage 10-30 V dc
Delay at Power-up (ms) 1000
Indicator Display Type Indicator LEDs
Minimum response time (ms) .5
Special Feature: Bussable Power No
Feature: Timing (Hold/Delay) No
Feature: Audible No
Feature: Quick Disconnect Yes
Housing Material Thermoplastic

Sin garantía
