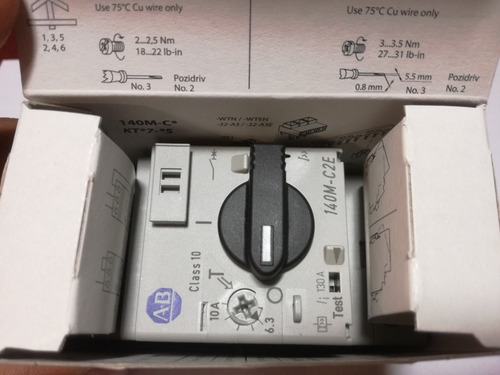

Allen Bradley 140m-c2e-c10, Se Factura Si Requiere

Descripción

Equipo Nuevo, se factura si lo requiere, garantía de 3 meses

Electrical
With integrated auxiliary switch No
With integrated under voltage release No
Rated short-circuit breaking capacity lcu at 400 V, AC 100 kA
Rated operation power at AC-3, 400 V 4 kW
Rated operation power at AC-3, 230 V 2.2 kW
Rated operating voltage 230 A
Type of control element Turn button
Overload release current setting 6.3 A
Type of electrical connection of main circuit Screw connection
Magnetic release current per IEC 130 A
Rated operational current (Ie) per IEC 10 A
Magnetic trip current 130 A
Short circuit current (Type 2 coordination), max-inv 50 kA a 480V
Current range 6.3...10 A
Ultimate short circuit breaking capacity (Icu) per IEC 50 kA a 500V
Rated service short circuit breaking capacity (Ics) per IEC 50 kA a 500V
Hp rating, max 7.5 Hp a 460V, 3-phase
Rated operating voltage, max 690V per IEC, SEV, VDE0660
Electrical life cycle (Ie max.) 100000 operations
Short circuit current for combination motor controller with 100-K contactor, max-inv 65 kA a 480Y/277V, UL 508-Type F
Short circuit current for combination motor controller with 100-C contactor, max-inv 65 kA a 480Y/277V, UL 508-Type F
Short circuit current for self-protected combination motor controller with 100-C contactor, max-inv 65 kA a 480Y/277V, UL 508-Type E
Switching of standard motors per IEC 7.5 kW a 690V, 3-phase
KW rating, max 7.5 kW a 690V (AC-3), 3-phase

Garantía del vendedor: 3 meses
