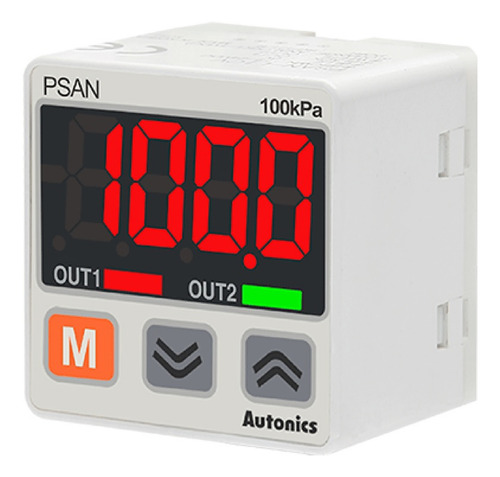

Autonics Psan-l1cpa-r1/8 - Pressure Sensor

Descripción

Sensor, Pressure, Standard pressure, Connector Type, Fluid, 0 to 1,000kPa, PNP open collector /4-20mAVDC Out, Port R1/8, 12-24VDC

Applicable fluid: (Fluid type) Air, Non-corrosive gas and fluid that will not corrode Stainless steel 316L
Pressure port direction: Bottom fitting
Pressure port: R1/8
Connection type: Connector type (connector type cable: 2m)
Pressure type: Standard pressure
Control output_PNP open collector: PNP open collector
Power supply: 12-24VDC ±10% (ripple P-P: max. 10%)
Current consumption: Voltage output type: Max. 50mA
Current output type: Max. 75mA
Protection structure: IP40

Sin garantía
