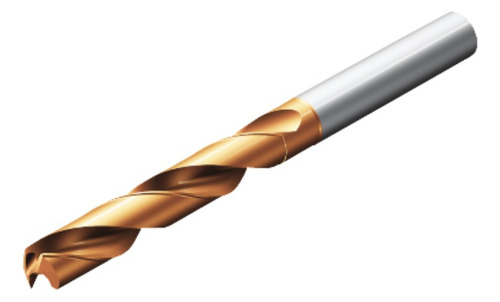

Broca Sandvik 860.1-0740-040a0-pm 4234

Descripción

Product data
Cutting diameter (DC)
7.4 mm
Achievable hole tolerance(TCHA)
H8
Connection diameter(DCONMS)
8 mm
Usable length (LU)
38.2 mm
Usable length diameter ratio (ULDR)
5.1622
Adaptive interface machine direction (ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 8
Orthogonal rake angle(GAMO)
19.11 deg
Connection diameter tolerance(TCDCON)
h6
Grade (GRADE)
4234
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Shank standard group(BSG)
DIN 6537 L
Coolant entry style code (CNSC)
0: without coolant
Point angle(SIG)
147 deg
Point length(PL)
1.2 mm
Overall length(OAL)
91 mm
Functional length(LF)
89.8 mm
Chip flute length(LCF)
53 mm
