Convertidor De Usb A Rs232 / 422 / 485 Nuevo

Descripción

The ATC-850 is an industrial high speed RS232 to USB adapter with support for RS422/RS485 to USB as well. The ATC-850 uses a DB9 male connector for RS232 and supports baud rates from 300 to 460K baud. The terminal block connector is used for the RS422 and RS485 interfaces and supports baud rates from 300 to 921K baud. The USB interface is 1.1 and 2.0 compatible and uses the FTDI high speed serial to USB chip.

Manufacturers Part Number
ATC-850
Security/Protection
RS485 bus protection 600 W
Power Supply
From the USB + 5VDC computer port, <200 mA
Flow Control
RS485 half duplex, auto flow control
Interface(s)
USB 1.1 and 2.0 compliant
Indicators (LED)
TX, RX, Power
CPU
Uses the FTDI serial to USB chip
Dimensions
105 x 85 x 27 mm (not including cable)
Serial Interface(s)
DB9 Male (DTE), Terminal Block
Serial Type(s)
RS232, RS422, RS485
Enclosure
Industrial Enclosure for USB to RS232/422/485 converter

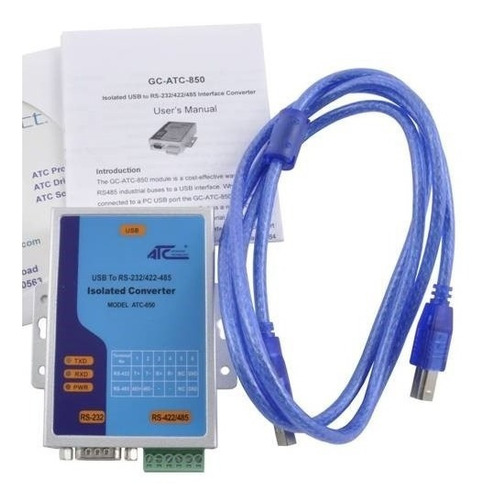

Included in Box
USB 1m USB-A to USB-B cable included

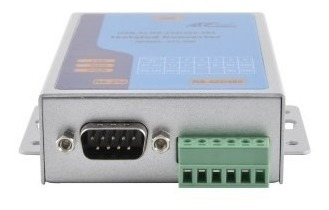

Connector(s)
RS232 DB9 male connection
USB-B cable included
Isolation
Voltage 3500 VRMS, 500 VDC
Temperature Range
Operating: -25°C to +70°C
Humidity: 10% to 90% (non-condensing)
