Ebm Papst A2e170-af23-02 Ventilador Axial 170 Mm

Descripción

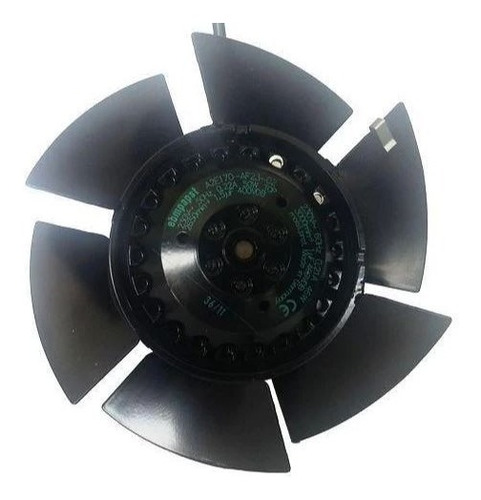

A2E170-AF23-02 AC Ventilador Axial

Type A2E170-AF23-02
Motor M2E068-BF
Phase 1~ 1~
Nominal voltage VAC 230 230
Frequency Hz 50 60
Method of obtaining data fa fa
Valid for approval/standard CE CE
Speed (rpm) min-1 2700 3150
Power consumption W 47 53
Current draw A 0.23 0.23
Capacitor µF 1.5 1.5
Capacitor voltage VDB 450 450
Capacitor standard S0 (CE) S0 (CE)
Max. ambient temperature °C 45 60
Starting current A 0.38 0.38

Technical description
Weight 1.2 kg

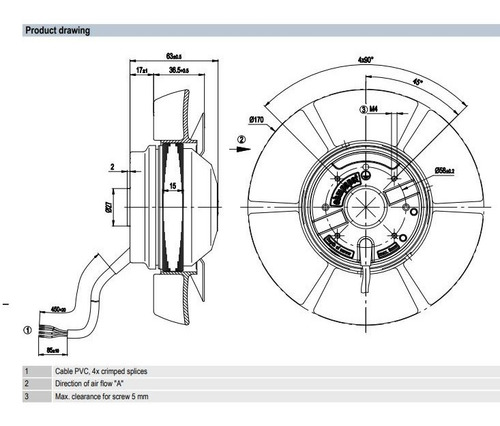

Fan size 170 mm
Rotor surface Painted black
Impeller material Die-cast aluminum
Number of blades 6
Airflow direction "A"
Direction of rotation Clockwise, viewed toward rotor
Degree of protection IP44; installation- and position-dependent as per EN 60034-5
Insulation class "B"
Moisture (F) / Environmental (H)
protection class
F5
Max. permitted ambient temp.
for motor (transport/storage)
+ 80 °C
Min. permitted ambient temp. for
motor (transport/storage)
- 40 °C
Installation position Shaft horizontal or rotor on bottom; rotor on top on request
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Touch current according to IEC
60990 (measuring circuit Fig. 4,
TN system)
< 0.75 mA
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; CE
Approval EAC
