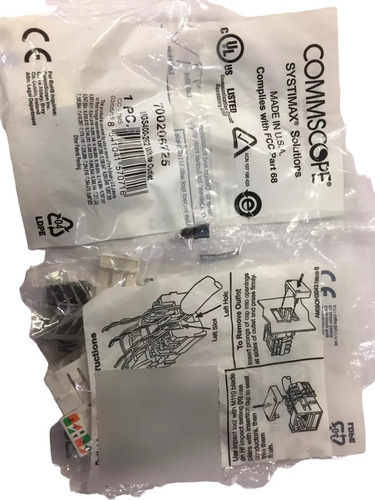

Jack Cat 6 Systimax Azul Paq 25 Pz Modelo 700206758

Descripción

Conector cat6 systimax hembra blanco MGS400-262
Product Classification
Portfolio SYSTIMAX®
Brand GigaSPEED XL®
Product Type Modular jack
Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America

Dimensions
Depth 30.48 mm | 1.20 in
Height 20.32 mm | 0.80 in
Width 20.32 mm | 0.80 in

Electrical Specifications
ANSI/TIA Category 6
Contact Resistance Variation, maximum 20 mOhm
Contact Resistance, maximum 100 mOhm
Current Rating 1.5 A @ 20 °C
1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, conductive surface 1500 Vac @ 60 Hz
Dielectric Withstand Voltage, RMS, contact-to-contact 1000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm

Environmental Specifications
Flammability Rating UL 94 V-0
Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Relative Humidity Up to 95%, non-condensing
Safety Standard cUL | UL
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)

General Specifications
Cable Type U/UTP (unshielded)
Color White
Package Quantity 1

Mechanical Specifications
Conductor Gauge, solid 22 AWG | 24 AWG
Conductor Gauge, stranded 22 AWG | 24 AWG
Conductor Type Solid | Stranded
Contact Plating Material Precious metals
Material Type Copper alloy | High-impact, flame retardant, thermoplastic
Plug Insertion Life, minimum 750 times
Plug Insertion Life, test plug IEC 60603-7 compliant plug
Plug Retention Force, minimum 30 lbf | 133 N
Termination Contact Plating Nickel
Termination Type IDC
Wiring T568A | T568B

Sin garantía
