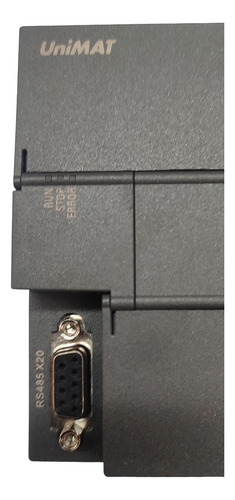

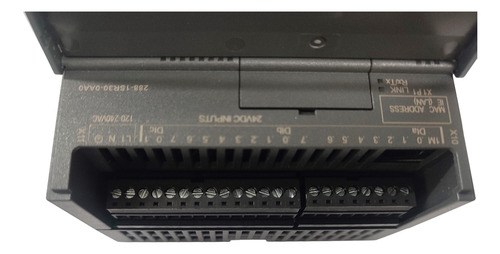

Plc Unimat S7200 Smart Cpu Sr30 18 Di_12do

Descripción

CPU S7-200 SMART MARCA UNIMAT
CPU SR30 CON ALIMENTACION DE 85 A 264 VAC/ 18 ENTRADAS DIGITALES A 24 VDC /12 SALIDAS A RELEVADOR, PUERTO RS485(PPI ). PUERTO ETHERNET. EXPANDIBLE CON MODULOS DIGITALES Y ANALOGICOS (HASTA 6 MODULOS).
CAT. UN 288-1SR30-0AA0


TECHNICAL PARAMETERS
MODEL : CPU SR30
ORDER NUMBER : UN 288-1SR30-0AA0
DIMENSIONS W X H X D (MM) : 110×100×81
CURRENT SUPPLY (24 V DC) : 300 mA max
DIGITAL INPUT CURRENT CONSUMPTION (24 V DC) : 4 mA per point input used
CPU CHARACTERISTICS
USER MEMORY : 24 KB program memory/12 KB data up to 10 KB retentive memory
ONBOARD DIGITAL I/O : 18 points input/12 points output
MODULE EXTENSION : Up to 6 expansion modules
SIGNAL BOARD EXPANSION : Up to 1 signal board
HIGH SPEED COUNTER :6 in total
Single phase: 6 channels 200 KHz
AB phase: 4 channels 100 KHz
COMMUNICATION
NUMBER OF PORTS :
Ethernet: 1

Serial Ports: 1 (RS485)
Expansion port: optional 485 BD board
PROGRAMMING DEVICE
Serial port: 1 connection, Ethernet port: 1 connection
CPU?PUT/GET?
Ethernet: total number of client and server connections 6
POWER INPUT
VOLTAGE RANGE: 85 ~ 264 V AC
POWER OUTPUT
VOLTAGE RANGE : 20.4 ~ 28.8 V DC
RATED OUTPUT CURRENT (MAXIMUM) : 300 mA
DIGITAL INPUT
ENTER POINTS : 18 Type sink/source
RATED VOLTAGE
NORMAL DI POINT: 24 V DC at 4 mA, rated value High-speed DI point: 24 V DC at 6.5 mA, rated value
ALLOWABLE CONTINUOUS VOLTAJE : 30 V DC max
LOGIC 1 SIGNAL (MINIMUM): I0.0-I0.3, I0.6-I1.1: 15VDC at 3.7mA ,others: 15VDC at 2.5mA
LOGIC 0 SIGNAL (MAXIMUM) : 5V DC at 1mA
FILTER TIME : Each channel can be selected individually (points I0.0 to I1.5):
0.2, 0.4, 0.8, 1.6, 3.2, 6.4 and 12.8ms Individually selectable for each channel (I1.6 and greater): 0, 6.4, 12.8ms



DIGITAL OUTPUT
OUTPUT POINTS : 12 type relay, dry contact
VOLTAGE RANGE : 5 ~ 30 V DC or 5 ~ 250 V AC
RATED CURRENT PER POINT (MAXIMUM) : 2.0 A
