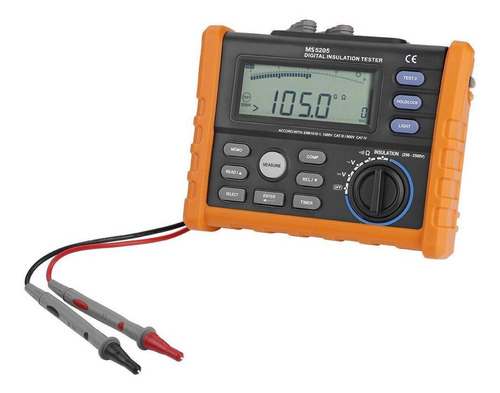

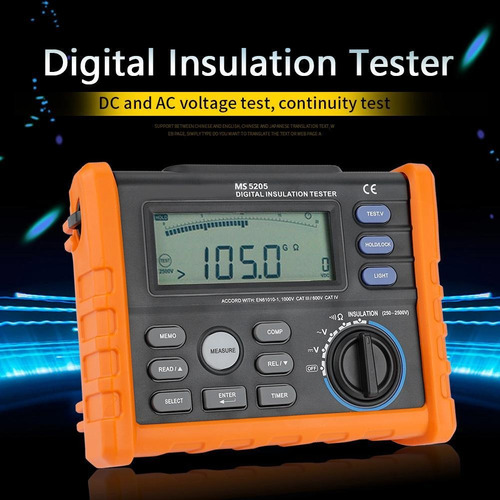

Probador Digital De Resistencia De Aislamiento Megger Megohm

Descripción

Features:


Test the insulation resistance with 250V-2500V.


Automatic calculate PI (polarization index) and DAR (dielectric absorption ratio).


With backlight display and auto power off.


Press Hold button to freeze the displayed value. Press again to release the display.


DC and AC voltage test, continuity test.









Specifications




Technical Parameter


Output
Voltage


Measuring
Range




Insulation Test


250V ;(0 ; percent +20 percent )


0.01M Omega 250M Omega ; plus or minus
(3 percent +5)




500V ;(0 percent +20 percent )


0.01M Omega 500M Omega ; plus or minus
(3 percent +5)




1000V ;(0 percent +20 percent )


0.01M Omega 1000M Omega ; plus or minus
(3 percent +5)




2500V ;(0 percent +20 percent )


0.1M Omega 2.00G Omega ; plus or minus (3 percent +5)
2.00G Omega 20.00G Omega plus or minus (5 percent +0.2G Omega )
20.0G Omega 100.0G Omega plus or minus (10 percent +2G Omega )






1000V ;(0 percent +20 percent )


5.00G Omega 10.00G Omega plus or minus (10 percent +0.2G Omega )




Short Circuit ;Current


3mA




Multimeter Functions


DC
Voltage Test


0.11000V plus or minus 0.5 percent




AC Voltage Test


0.1750V plus or minus 1 percent




Continuity Test


0.01 Omega 200 Omega plus or minus 0.5 percent




General Parameter


Brand ;


PEAKMETER




Model


MS5205




Color


Orange




Power Supply


6
x 1.5V LR4 Batteries (NOT included)




Item Size


18*14*6.5cm
/ 7.1*5.5*2.6in




Weight


Approx.
2285g




Safety Rating


CE, ;CAT.III, ;1000V, ;ETL





Package Included:
1 x MS5203 Digital Insulation Tester
2 x Crocodile Clips
2 x Test Leads
1 x Hand Bag
