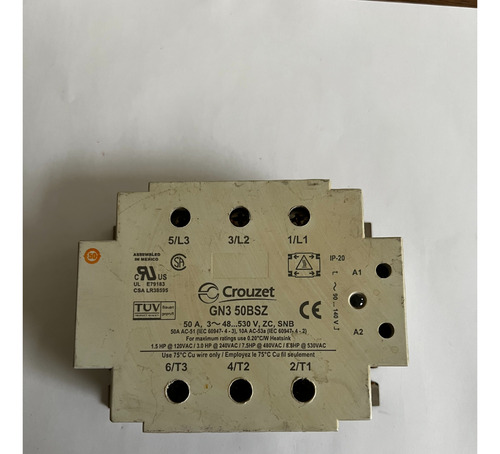

Relevador De Estado Solido Crouzet (Usado)

Descripción

GN3 Series 3 Phase Solid State Relay - AC Input
Output Specifications
Output Current (40°C) 25 50
Voltage range (Vrms) (1) 48-600Vac 48-600Vac
Peak Voltage (Vpk , t = I min.) 1100 1100
Off-state leakage mArms
(without RC / with RC) 0.06 / 3.0 0.06 / 3.0
Minimum Current (mArms) 100 100
1 cycle surge current 50-60 Hz
(Apk, Ta = 25ºC) 275-300 710-750
1 second surge current 50/60 Hz
(Apk, Ta = 25ºC) 85 150
Forward voltage drop
(Vpk @ Imax, Ta = 40ºC) 1.35 1.35
I2 T (50-60Hz, ½ cycle) 380-370 2520-2320
Rjb (thermal res. Junction to baseplate, °C/W) 0.24 0.12
Static off-state dv/dt (Vµs, Ta = 25ºC) 500 500
HP Ratings at 240V 1 3
HP Ratings at 480V 3 7.5
HP Ratings at 600V 5 10
Min/Max wire size 16/8 AWG 16/8 AWG
Terminal Torque (N-m)

Input Specifications
Input voltage AC/DC 18-36V 90-140V 180-280V
Drop out voltage AC/DC 2V 10V 10V
Min. input current (for on-state) 15mA 7mA 7mA
Maximum input current 20mA 16mA 20mA
Input Resistance (Ohms)
Turn-on time (2) 28mSec 20mSec 20mSec
Turn-off time 30mSec 30mSec 30mSec
Min/Max stranded/solid wire 24/14 AWG 24/14 AWG 24/14 AWG
Terminal Torque (N-m)

General Characteristics
Operating Temperature (ºC) (3)
Storage Temperature (ºC) -40 to + 100
Input to output isolation 4200Vrms
Input/output to ground isolation 4000Vrms
Input to output capacitance 8pF (typical)
Operating Frequency 47 to 63 Hz
Housing Material
Weight (grams) 360

Standards of Compliance
CE Compliant with the LVD 73/23/EEC
UL Recognized per UL 508 and CSA C22.2 no. 14-95
TUV Certified per EN 60950
IEC 62314
IEC 60068-2-6 35mm/10-55Hz
IEC 60068-2-27 15G / 11ms
IEC 61000-4-2 Level 3 Electrostatic Discharge
IEC 61000-4-3 Level 3 Radiated Electromagnetic Noise
IEC 61000-4-4 Level 3 Immunity to Electrically Fast Transients
IEC 61000-4-5 Level 3 Immunity to Electrical Surges
IEC 61000-4-6 Level 3 Conducted Electromagnetic Noise
CISPR 11 Class A Conducted and Radiated Noise for Industrial Enviroments

Garantía del vendedor: 3 días
