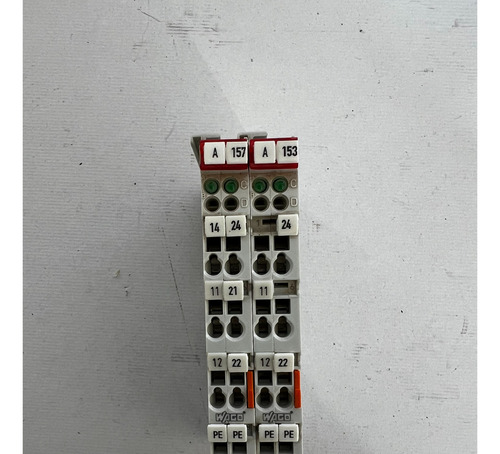

Wago Relay Output Module 2-channel 125vac 750-514 (Usado)

Descripción

WAGO RELAY OUTPUT MODULE 2-CHANNEL 125VAC 750-514
No. of outputs 2 changeover contacts
Current consumption typ. (internal) 70 mA
Max. switching voltage 125 V AC / 30 V DC
Switching power 62.5 VA / 30 W
Min. switching current 0.01 mA / 10 mV DC
Max. switching current 0.5 A AC / 1 A DC
Max. switching frequency 20/min
Pull-in time (max.) 4 ms
Drop-out time (max.) 4 ms
Contact material Silver alloy, gold-plated
Mechanical life (min.) 1 x 108
switching operations
Electrical life (min.) 1 x 105
(0.5 A / 125 V AC)
2 x 105
(1 A / 30 V DC)
Isolation 1.5 kV eff. (field/system)*;
* 2.5 kV rated surge voltage
Internal bit width 2 bits
Wire connection CAGE CLAMP®
Cross sections 0.08 mm² ... 2.5 mm² / AWG 28 ... 14
Strip lengths, 750/753 Series 8 ... 9 mm / 0.33 in
9 ... 10 mm / 0.37 in
Width 12 mm
Weight 49.5 g
EMC immunity of interference acc. to EN 61000-6-2, marine applications
EMC emission of interference acc. to EN 61000-6-4, marine applications

Garantía del vendedor: 3 días
