Socket Tester Circuit Gfci Noyafa Sequence All Circuit

Descripción

NF-827 is a socket line sequence detection and digital circuit breaker finder; This instrument is suitable for home, factory and all kinds of large construction sites, it is composed of socket tester and receiver.

Features:
Accurate Circuit Breaker Identification: Use the circuit breaker finder to quickly and accurately find the correct break location, ensuring efficient electrical troubleshooting.
Socket Tester: Plug in the strong power 90~120V power socket, you can see three red indicator lights, different order lights on, judge the fire line, zero line, ground line sequence is correct or wrong.
Wide Range Compatibility: It operates on 90~120V AC circuits and is suitable for a variety of electrical systems and installations.

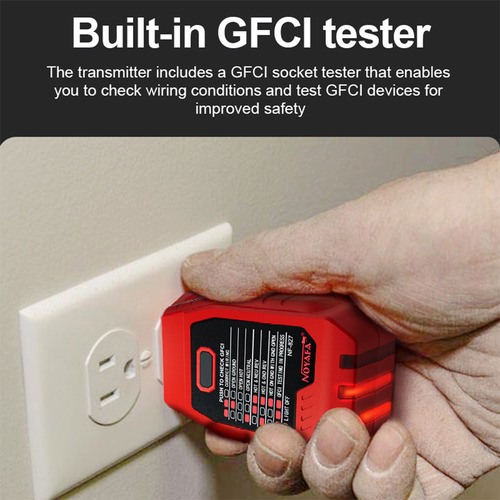

Built-in GFCI Tester: The transmitter includes a GFCI socket tester that enables you to check wiring conditions and test GFCl devices for improved safety.
2 in 1 is More Convenient: The transmitter is docked in the receiver, holding the components together when not in use.
NCV Induction Pen: One-click identification of live equipment, can detect wires, sockets and so on to avoid the danger caused by strong electricity in the construction process.
High Brightness LED Lighting: Built-in electroplating condenser reflector, easy to adapt to the dark environment.

Specifications:
Model: NF-827
Material: ABS
Air Switch Detection Range: 0~3cm
Test Voltage of Socket Line Sequence: CAT II 90~120V, 50/60Hz, 5W
NCV Electiric Pen: AC90V~1000V, 50/60Hz
Power Supply Mode: GP 1604G 9V
Low Current Indication: If the battery is lower than 7.3V, the probe indicator will flash
Low Power Shutdown: If the battery is lower than 6.8V, the instrument will automatically shut down
Maximum Operating Current: equal or less than 50mA
Standby Current: equal or less than 30mA
LED Lighting: Yes
Receiver Power Supply: 9V 6F22 (Not included)
Operating Ambirnt Temperature: -20 Degrees Celsius~50 Degrees Celsius
Receiver Size: 49 * 34 * 202mm / 1.93 * 1.34 * 7.95in
Socket Tester Size: 56 * 32 * 99mm / 2.20 * 1.26 * 3.89in
Package Weight: 550g / 19.40oz
Package Size: 25 * 17.5 * 6.5cm / 9.84 * 6.89 * 2.56in

Package List:
1 * Receiver
1 * Socket Tester
1 * Cloth Bag
1 * User Manual (English)
